Vanquish VS4-10 RC Rock Crawler Kit Portal Axle 1/10

Vanquish VS4-10: Build Your Ultimate 1/10 Scale RC Rock Crawler with Portal Axles!

Alright, buckle up buttercup, because this ain't your grandma's shopping cart. This... is the game changer. This is the "I woke up like this" of your everyday life. Forget boring, embrace bold. Prepare to be the envy of everyone you meet. Trust me, you NEED this. Consider your life officially upgraded. Get ready to experience the future. You in?

$374.98 $749.95

num:

description

The Vanquish VS4-10 Portal Axle Builders Kit delivers peak performance and durability for demanding off-road builds. Featuring the advanced VFD Twin transmission and F10 portal axles, this kit provides optimal ground clearance, low centre of gravity, and high-strength components for exceptional control and capability on challenging terrain.

Features

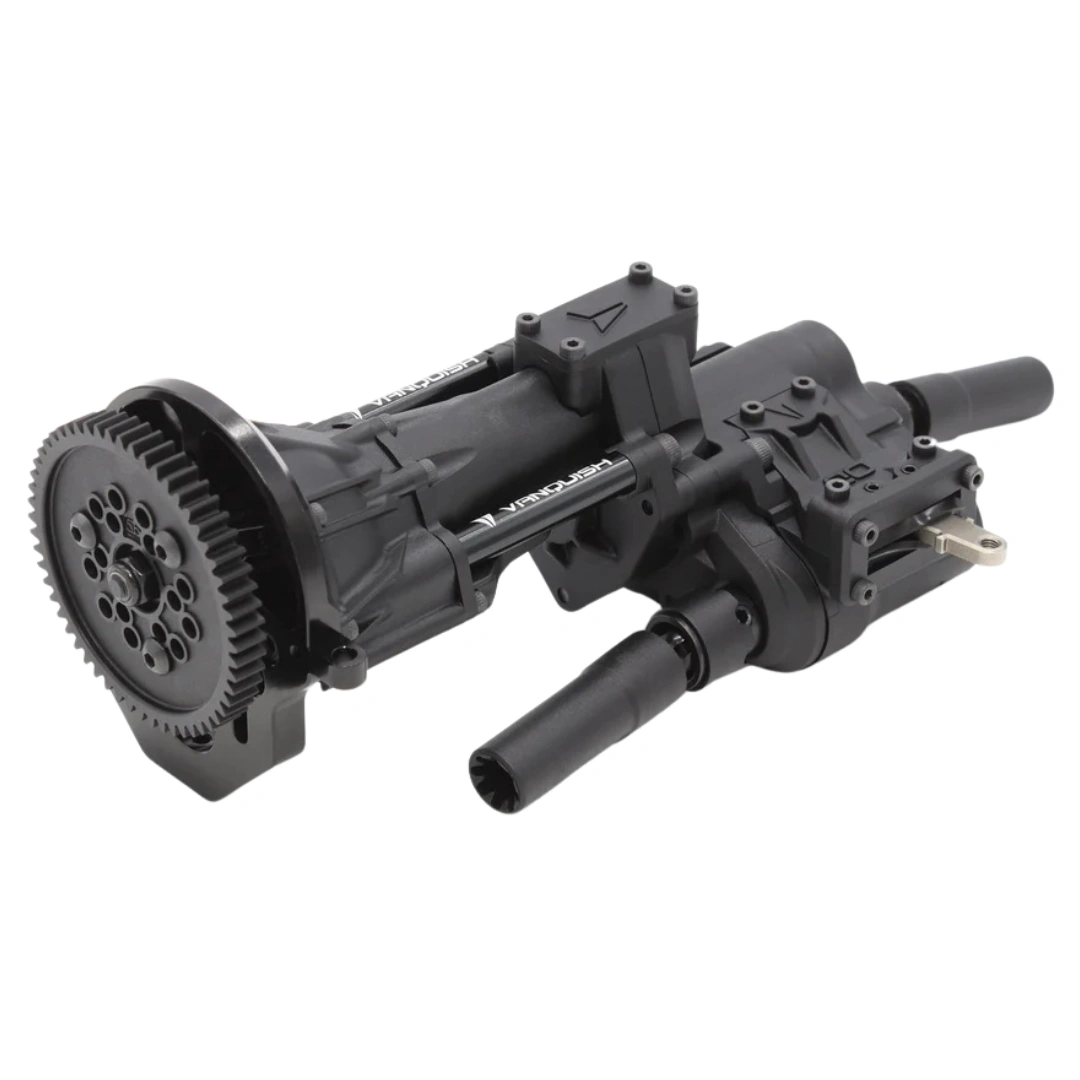

VFD Twin Transmission with selectable overdrive (6.5% to 46%) and 3-position dig
F10 Portal Axles with brass inserts and alloy knuckle weights for improved stability
Heavy-duty steel C-channel chassis with integrated crossmembers and servo mounts
ISD10 driveshafts with CV-style joints for smooth power transfer
High-clearance design with scale realism throughout chassis and drivetrain

Specifications

Scale: 1/10
Axle Gear Ratio: 5.25:1
Pinion Gear: 15T
Spur Gear: 52T (32P)
Width Hex to Hex: 200mm (7.87')
Wheelbase: 313mm (12.3')
Overall Front Ratio (6.5% OD): 53.7:1
Overall Front Ratio (46% OD): 35.8:1
Overall Rear Ratio: 57.2:1

Includes

Vanquish VS4-10 Builders Kit with VFD Twin transmission and F10 portal axles
SC8E 80mm Incision shocks with hard-anodised aluminium bodies
Threadlock and grease
30wt shock oil
7mm to 8mm thin wall wheel nut adapter tool

Important Notes

Transmission dust shield is not fully element-proof; periodic inspection and maintenance recommended
Compatible with most 540 brushed and brushless motors

Required Items

ESC
540 motor
Steering servo (Vanquish 20mm servo horn included)
Battery and charger
Transmitter and receiver
X2 standard-size servos for dig and selectable overdrive (standard or low-profile)
X2 24mm servo horns
4-channel transmitter and receiver
Tools, paint, and body
1.9 wheels and tyres (recommended)
